How to Choose the Right Backrack?
17 Dec 2022
CAB GUARD FRAME AND HARDWARE KIT
CHOOSE YOUR CAB GUARD FRAMECHOOSE YOUR HARDWARE KIT
| BACKRACK | SAFETY | LOUVERED | OPEN | HALF LOUVERED | HALF SAFETY | THREE ROUND | THREE LIGHT Lights not included | STANDARD NO DRILL | TOOLBOX NO DRILL 21” | TOOLBOX NO DRILL 31” | LOW PROFILE DRILL | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CHEV/GMC | ||||||||||||
| 2019-TD Silverado / Sierra New Body Only | 15019 | 10900 | 12900 | 14900 | 149LV | 149SM | 149TR | 149TL | 30122 | 30122TB | 30122TB31 | 30119LP |
| 2008-2019 Silverado / Sierra Old Body | 15004 | 10500 | 12500 | 14500 | 145LV | 145SM | 145TR | 145TL | 30119 | 30119TB | 30119TB31 | 30119LP |
| 1999-2007 Classic | 15003 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30109 | 30109TB | 30109TB31 | NA |
| 1988-1998 CK Series | 15004 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30103 | 30103TB | 30103TB31 | NA |
| 1968-1987 Chev / GMC | 15005 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30103 | 30103TB | 30103TB31 | NA |
| 2015-TD Colorado / Canyon | 15002 | 10600 | NA | NA | NA | NA | NA | NA | 30126 | 30126TB | 30126TB31 | NA |
| 2004-2014 Colorado / Canyon | 15015 | 10200 | NA | NA | NA | NA | NA | NA | 30116 | 30116TB | NA | NA |
| 1985-2005 S10 / S15 | 15010 | 10200 | NA | NA | NA | NA | NA | NA | 30113 | 30113TB | NA | NA |
| DODGE | ||||||||||||
| 2019-TD Ram All Beds NEW BODY ONLY | 15006 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30167 | 30167TB | 30167TB31 | 30117LP |
| 2002-2018 Ram 8 ft / 2010-2018 6.5 ft / 2002-2008 All Beds | 15006 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30117 | 30117TB | 30117TB31 | 30117LP |
| 2009-2018 Ram 5.5 ft Bed Only | 15006 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30127 | 30117TB | 30117TB31 | 30127LP |
| 2009-2019 Ram 5.5/6.5 ft Ram Box Only | 15017 | NA | NA | NA | NA | NA | NA | NA | 30147 | NA | NA | NA |
| 1994-2001 Ram | 15005 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30107 | 30107TB | 30107TB31 | NA |
| 1968-1993 Ram | 15005 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30103 | 30103TB | 30103TB31 | NA |
| 2005-TD Dakota | 15016 | 10200 | NA | NA | NA | NA | NA | NA | 30113 | 30113TB | NA | NA |
| 1987-2004 Dakota | 15009 | 10200 | NA | NA | NA | NA | NA | NA | 30113 | 30113TB | NA | NA |
| FORD | ||||||||||||
| 2017-TD Superduty Aluminum Body | 15018 | 10700 | 12700 | 14700 | 147LV | 147SM | 147TR | 147TL | 30221 | 30221TB | 30221TB31 | NA |
| 1999-2016 Superduty | 15001 | 10300 | 12300 | 14300 | 143LV | 143SM | 143TR | 143TL | 30201 | 30201TB | 30201TB31 | 30201LP |
| 2015-TD F-150 Aluminum Body | 15004 | 10500 | 12500 | 14500 | 145LV | 145SM | 145TL | 145TL | 30123 | 30123TB | 30123TB31 | NA |
| 2004-2014 F-150 | 15004 | 10500 | 12500 | 14500 | 145LV | 145SM | 145TR | 145TL | 30112 | 30112TB | 30112TB31 | 30112LP |
| 1997-2003 F-150 (No Supercrew) | 15003 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30102 | 30102TB | 30102TB31 | NA |
| 1997-2003 F-150 5.5 ft ( Supercrew ) | 15003 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30104 | 30104TB | NA | NA |
| 1975-1996 F-150 6.5 ft | 15005 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30105 | 30106TB | 30106TB31 | NA |
| 1975-1996 F-150 8 ft | 15005 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30106 | 30106TB | 30106TB31 | NA |
| 1993-2014 Ranger | 15009 | 10200 | NA | NA | NA | NA | NA | NA | 30111 | 30111TB | 30111TB31 | NA |
| TOYOTA | ||||||||||||
| 2008-TD Tundra | 15004 | 10500 | 12500 | 14500 | 145LV | 145SM | 145TR | 145TL | 30118 | 30118TB | 30118TB31 | NA |
| 1995-2007 Tundra | 15007 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30108 | 30108TB | 30108TB31 | NA |
| 2016-TD Tacoma | 15010 | 10200 | NA | NA | NA | NA | NA | NA | 30327 | 30327TB | NA | NA |
| 2005-2015 Tacoma | 15010 | 10200 | NA | NA | NA | NA | NA | NA | 30317 | 30317TB | NA | NA |
| 1997-2004 Tacoma | 15009 | 10200 | NA | NA | NA | NA | NA | NA | 30113 | 30113TB | NA | NA |
| NISSAN | ||||||||||||
| 2016-TD Titan | 15003 | 10400 | 12400 | 14400 | 144LV | 1454M | 144TR | 144TL | 30113 | 30113TB | NA | NA |
| 2004-2015 Titan | 15003 | 10400 | 12400 | 14400 | 144LV | 144SM | 144TR | 144TL | 30511 | 30511TB | 30511TB31 | NA |
| 2005-TD Frontier | 15016 | 10200 | NA | NA | NA | NA | NA | NA | 30113 | 30113TB | NA | NA |
| 1987-2005 Nissan | 15009 | 10200 | NA | NA | NA | NA | NA | NA | 30113 | 30113TB | NA | NA |
| MAZDA | ||||||||||||
| 1993-2014 Mazda | 15009 | 10200 | NA | NA | NA | NA | NA | NA | 30111 | 30111TB | 30111TB31 | NA |
RACK MOUNTING OPTIONS
Backrack offers different types of mounting options for your truck headache rack. Standard (No Drill), Low Profile(Drill), Toolbox adapter(comes in 21in and 31in), Tonnea Cover adapter (Wide top rail style and inside top rail style).
An industry leader in headache rack, offering quality products at affordable prices.
|
Standard No Drill |
Low Profile Drill Bracket |
|
Toolbox Adapter for 21" or 31" |

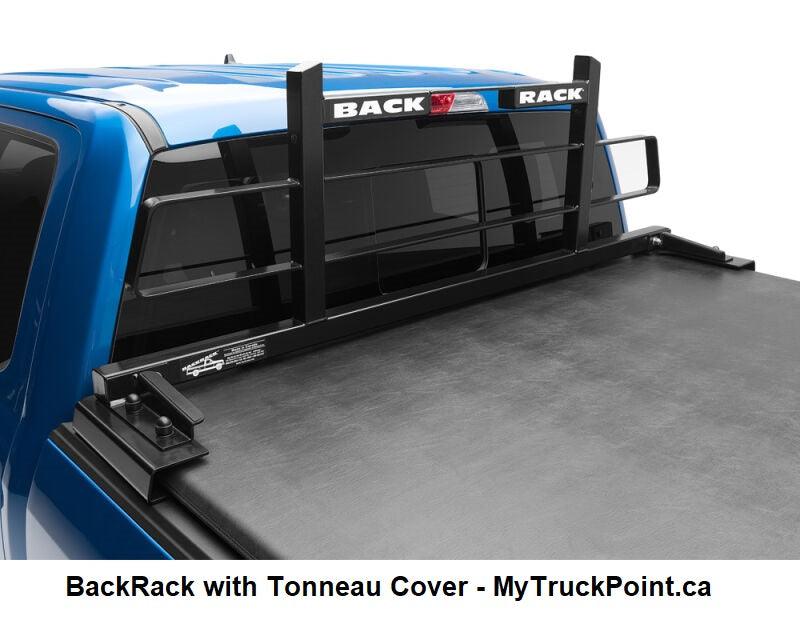

Wide Top Rail Style Tonneau Cover 50XXX series |
|
Inside Rail Style Tonneau Cover Adapter 40XXX series |
Inside Rail Style Tonneau Cover Adapter with 40XXX series bracket and Rack
Tonneau Compatible Hardware
| 40XXX SERIES | 50XXX SERIES | |||
|---|---|---|---|---|
| HARDWARE | FRAME | HARDWARE | FRAME | |
| CHEV/GMC | ||||
| 2019-TD Silverado / Sierra New Body Only | 40122 | 15019 | 50122 | 15029 |
| 2014-2019 Silverado / Sierra Old Body | 40120 | 15004 | 50120 | 15024 |
| 2007-2013 Silverado / Sierra | 40119 | 15004 | 50119 | 15024 |
| 1999-2007 Silverado / Sierra | 40109 | 15004 | NA | NA |
| 2015-TD Colorado / Canyon | 40126 | 15002 | NA | NA |
| DODGE | ||||
| 2019-TD 6.5 & 8 ft Ram | 40167 | 15006 | 50167 | 15026 |
| 2002-2018 6.5 & 8 ft Ram | 40117 | 15006 | 50117 | 15026 |
| 2009-2018 5.5 ft Ram | 40127 | 15006 | 50127 | 15026 |
| 2009-TD Rambox | NA | NA | NA | NA |
| FORD | ||||
| 2017-TD Superduty Aluminum Body | 40221 | 15018 | 50221 | 15021 |
| 1999-2016 Superduty | 40201 | 15001 | 50201 | 15021 |
| 2015-TD F-150 Aluminum Body | 40123 | 15004 | 50123 | 15024 |
| 2004-2014 F-150 | 40112 | 15004 | 50112 | 15024 |
| TOYOTA | ||||
| 2008-TD Tundra | 40118 | 15004 | NA | NA |
| 2016-TD Tacoma | NA | NA | 50327 | 15002 |
Important Information when ordering Tonneau Adapter Kit
| Notes: |
|---|
| Frames indicated above are BACKRACK™ frame style only |
| 15021, 15024 & 15026 are reduced in height to sit cab-high when used with 50XXX Series |
| All frames other than 15021, 15024 & 15026 will sit higher than the cab and will look odd on 50XXX Series |
| If height clearance and looks are concerns, we recommend 15021, 15024 & 10526 with 50XXX Hardware |
| 40XXX Series Hardware increases overall frame height by 1” |
| 50XXX Series Hardware increases overall height by 2” |
| All other frames are compatible with 40XXX & 50XXX but height increases 1” & 2” respectively |
| All other frames specified for your truck are designed to sit near cab high with Standard Hardware |
| Expect a 1” increase in height with 40XXX and 2” height increase with 50XXX |
