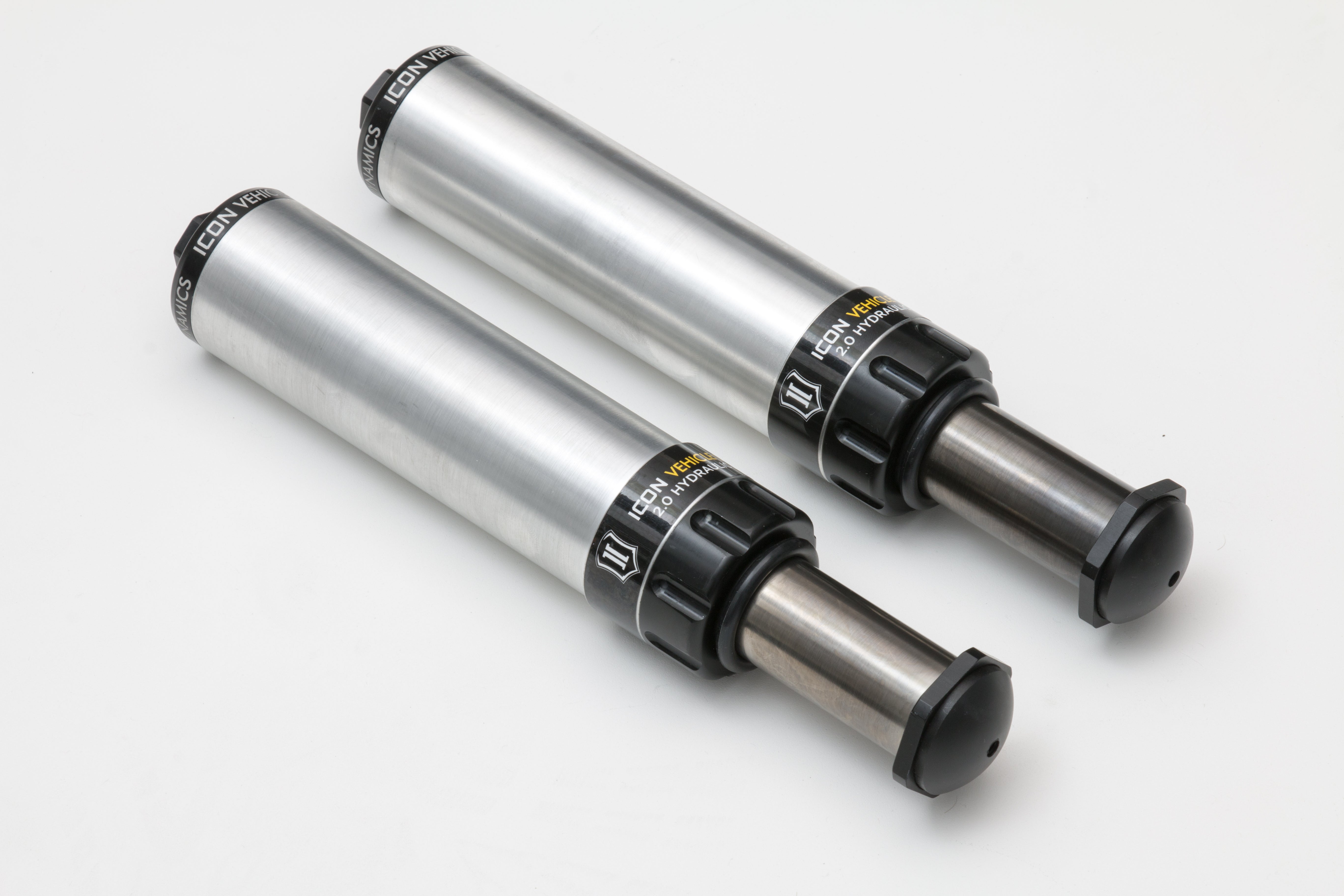

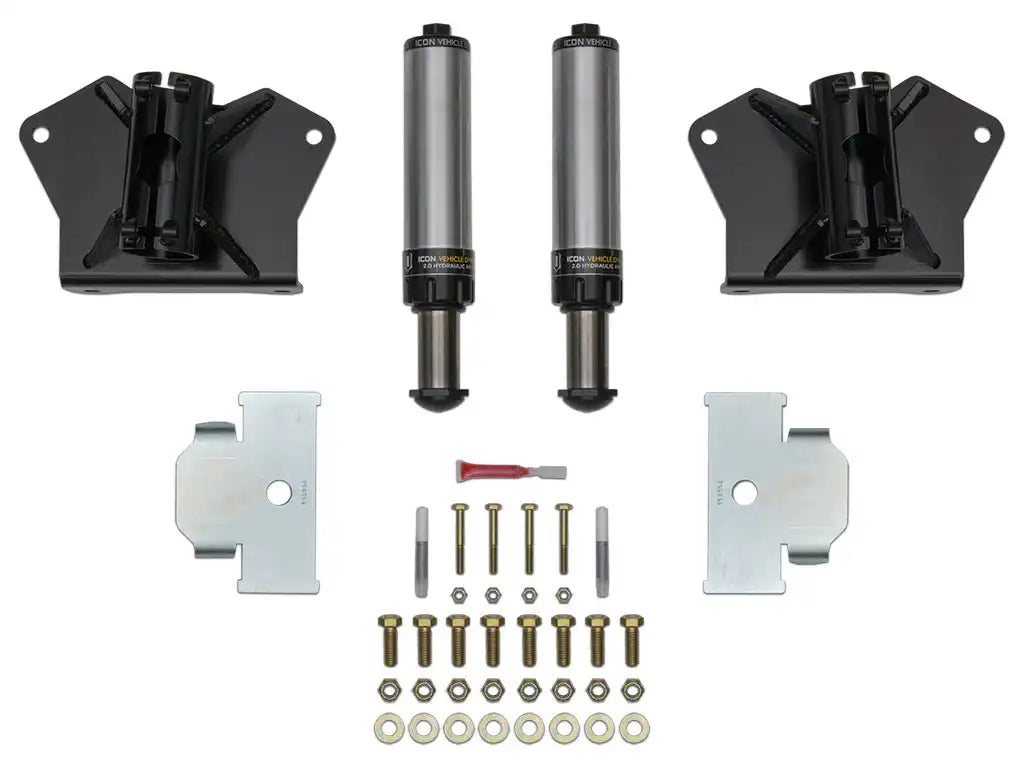

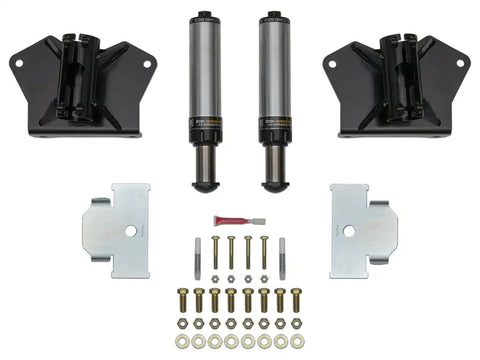

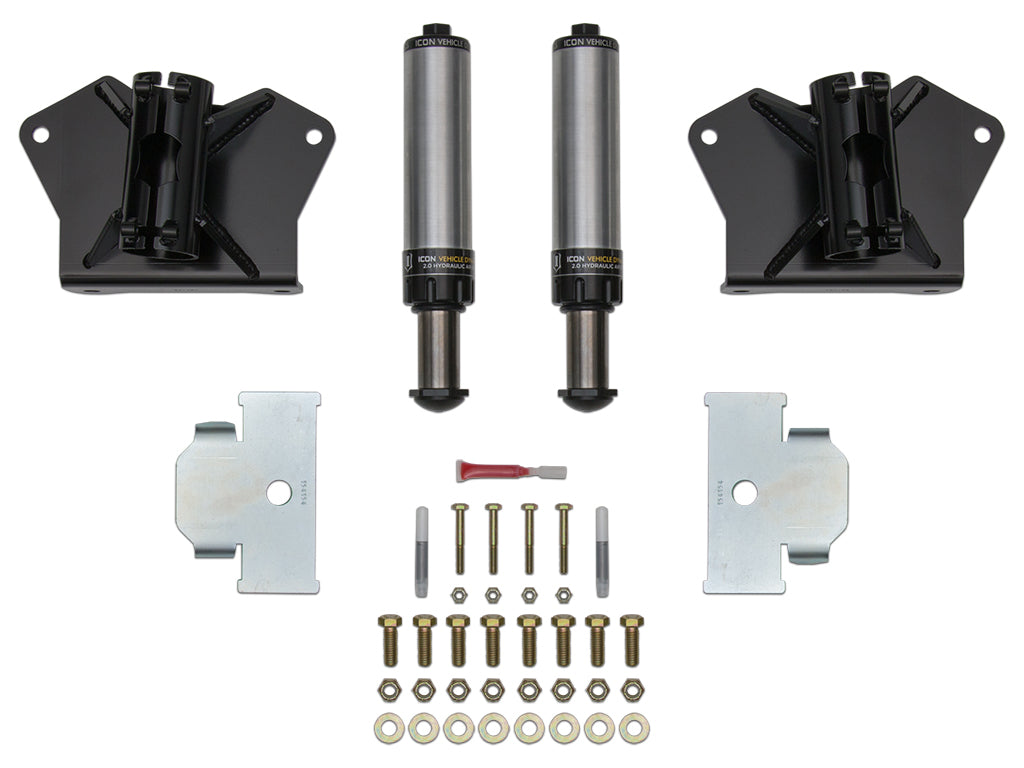

ICON Vehicle Dynamics 56108 - 07-21 TUNDRA REAR HYD BUMP STOP KIT

This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair. With no major cutting, welding, or fabrication required you have the option to return the vehicle back to its stock form. The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound – This translates into a harsh ride and poor handling in rough terrain. ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.

Features & Benefits

• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Replaceable noise reducing striker pad
• Fully serviceable
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Position sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality

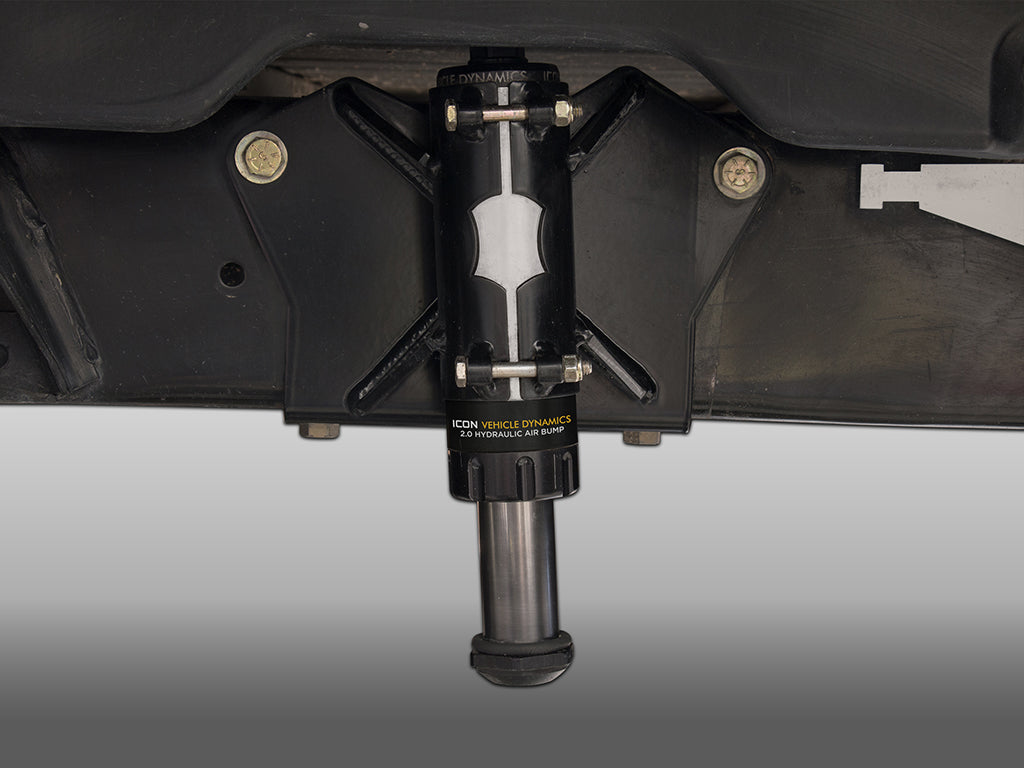

• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Fully reversible to factory configuration with no bed cutting required
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Multi stage CAD plated body for maximum corrosion resistance
• Double sealed high pressure Schrader valve
• Operating range of 50 – 250 PSI

Attributes

• Type: Hydraulic
• Color: Silver
• Quantity: Set Of 2
• Attachment Type: Bolt-On

Attributes:

• GTIN: 00840103403007
• Brand Name: ICON Vehicle Dynamics
• 17: Black
• 3390: Performance
• Attachment Type: Bolt On
• Bumper Material: Hydraulic
• Length: 2,5
• Service Parts: 202004 - 2.0 AIR BUMP REBUILD KIT

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 14.0000 x 12.0000 x 6.0000 inches
• Weight: 24.0000 lb
