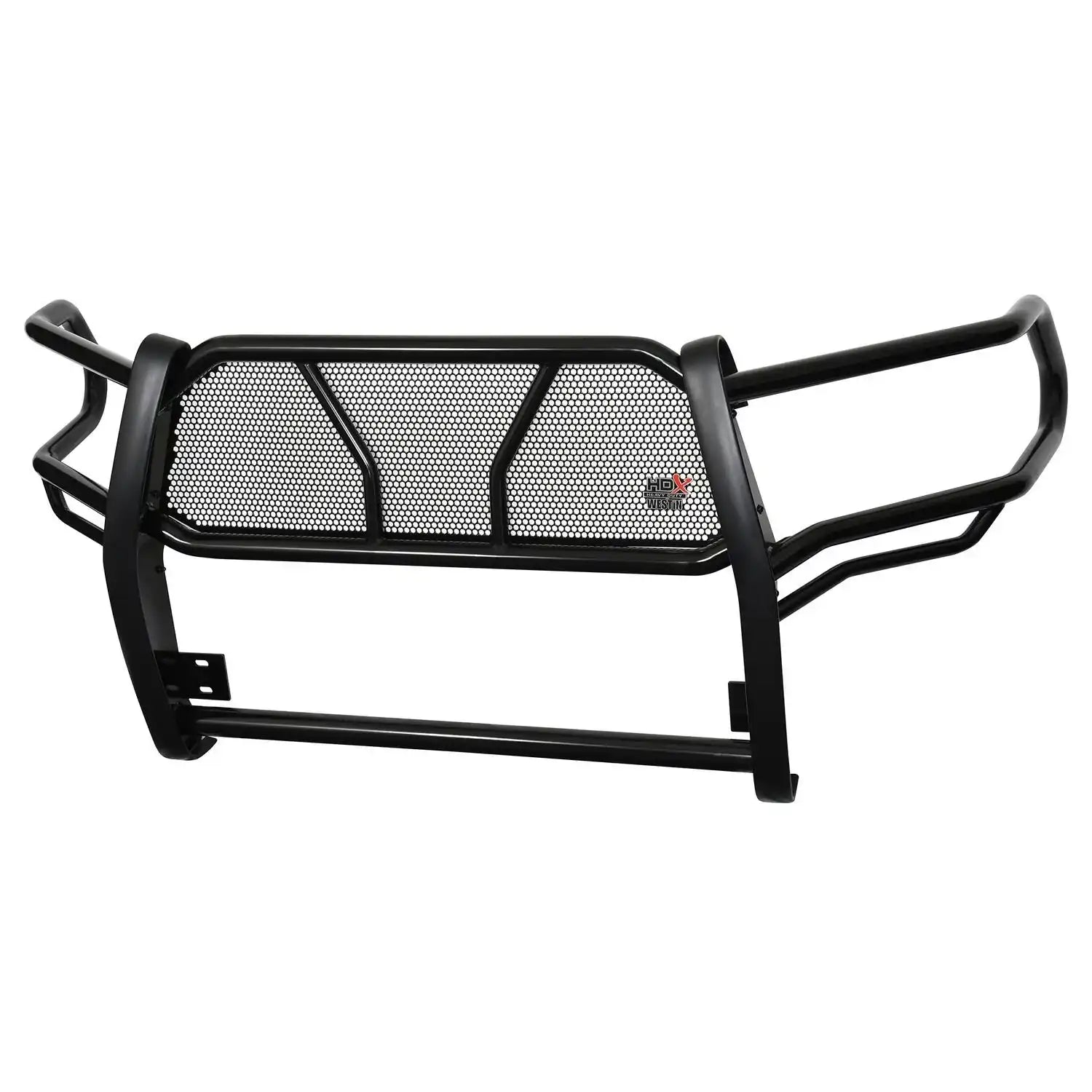

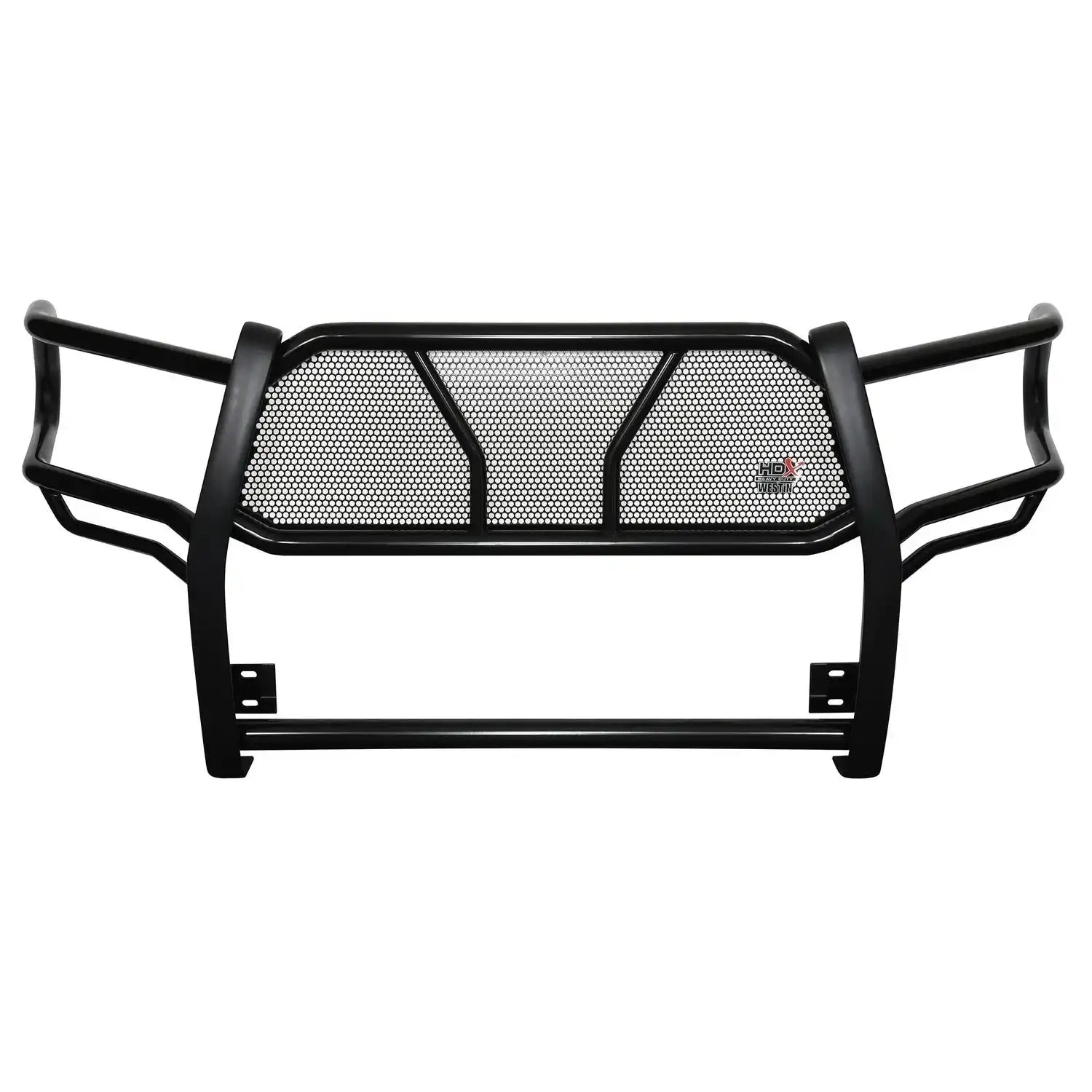

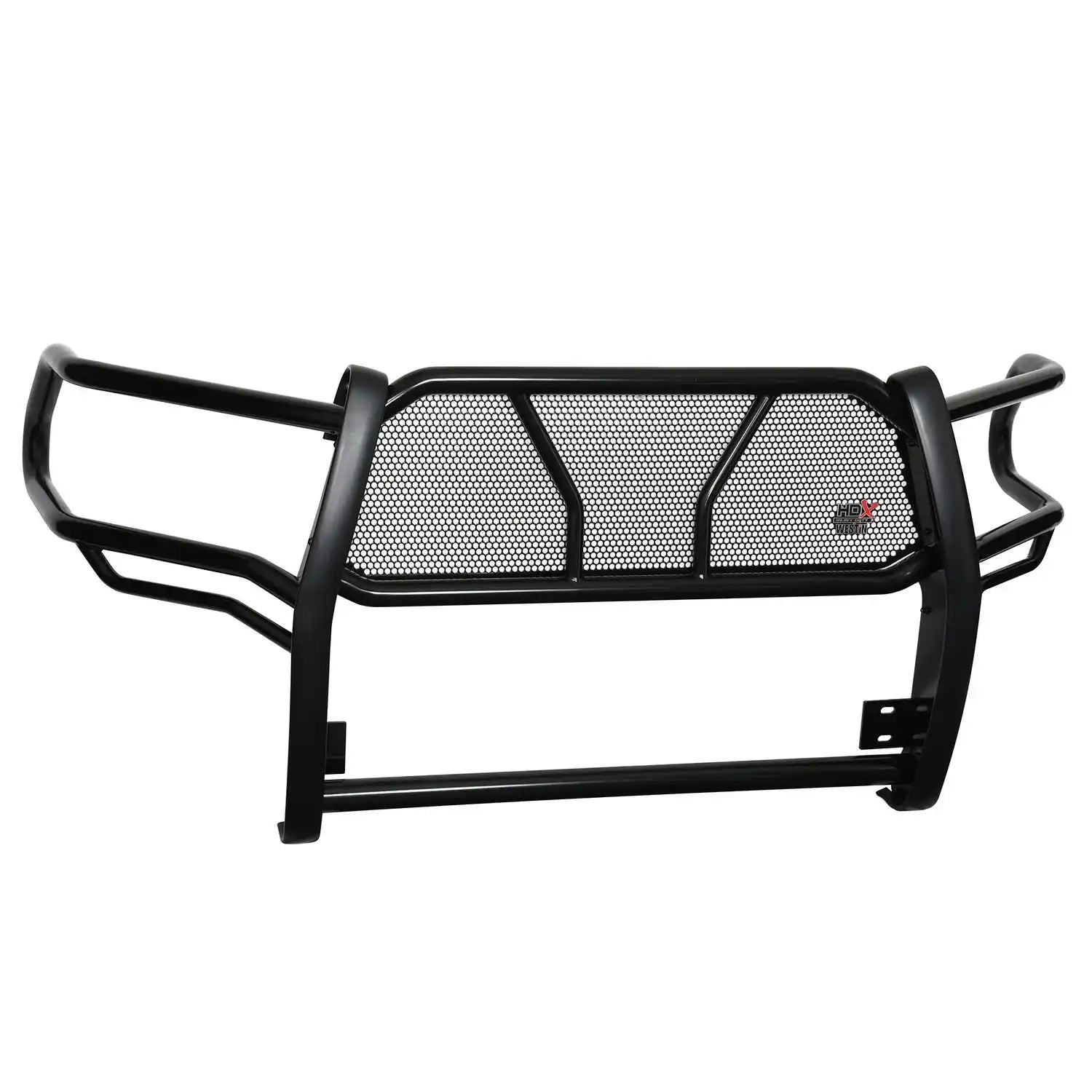

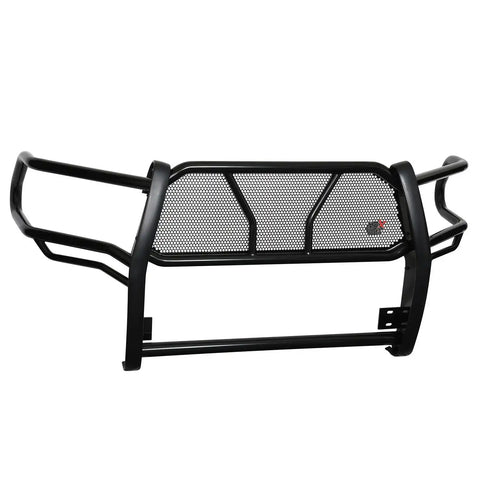

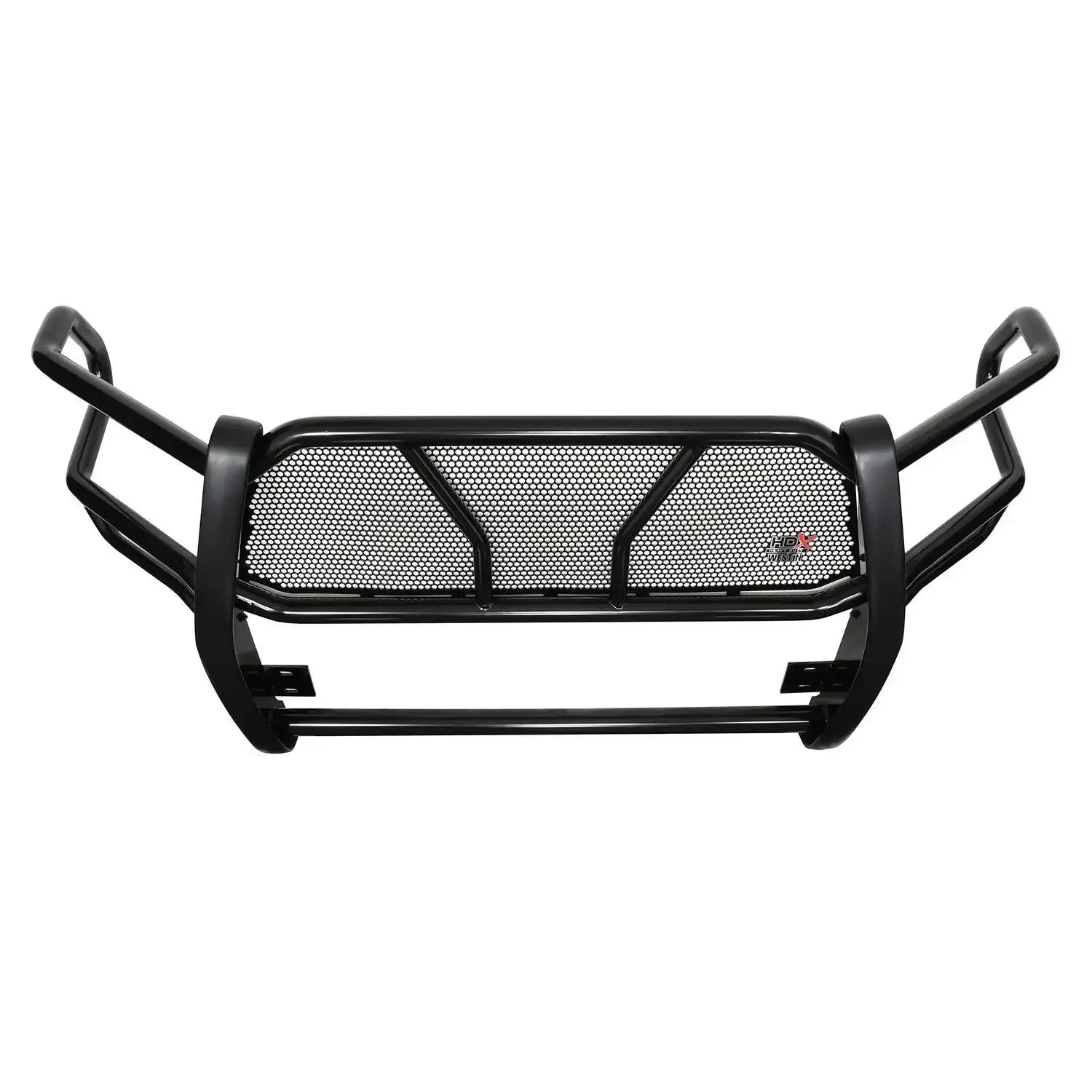

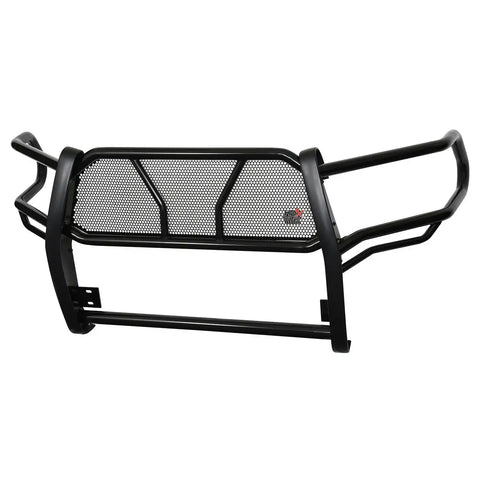

Westin 57-23975 - HDX Modular Grille Guard 2019-2024 Ram 1500- New Model

HDX Modular Grille Guard. Westin Automotive Product's new HDX Modular Grille Guards deliver bold styling and heavy-duty front-end protection. The innovative 3-piece design has proven its strength on emergency responder vehicles in a wide variety of high stress environments. Each application is engineered with strategically placed gusseting and reinforcement to provide superior structural rigidity that eliminates unwanted vibrations. The uprights feature durable 2-3/4 Inch wide rubber push pad strips for added coverage. With a heavy-duty frame mount system and wraparound wings made of massive 2 Inch diameter high-strength tube, these grille guards deliver complete front-end protection. Thanks to their modular construction, all HDX Modular Grille Guards are packaged and shipped via parcel post, providing a significant savings over LTL shipping. The HDX Modular Grille Guard features a durable polished stainless steel or black powder coat finish with an electrostatic base coat, providing long lasting corrosion protection from the elements.

Grille Guard; HDX; 3-Piece Modular; Powder Coated; Black; E-Coated Steel; 2 Inch Diameter Wraparound Wings/ 1-1/4 Inch Tube Diameter Support Wing; With Mounting Kit And Hardware

Features & Benefits

• 3-Piece Design
• 2 Inch Tube Full Wraparound Wings Provide Superior Strength And Protection
• Full Punch Plate Grille Delivers Total Front-End Protection
• 1-1/4 Inch Tube Wing Supports Enhance Structural Rigidity
• Heavy Duty 2 3/4 Inch Wide Upright Rubber Strips Give An Added Barrier Of Protection
• Electrostatic Base Coat Provides Long Lasting Corrosion Protection
• Limited 3 Year Warranty

Attributes

• Construction: 3-Piece Modular
• Tubing Diameter: 1-1/4 Inch
• Color/ Finish: Black Powder Coated
• Material: Steel
• Drilling Required: No
• Cutting Required: No
• Brush Guard: With Brush Guard
• With Punch Plate: Yes
• Winch Mount: No
• With Light Mounts: No
• With Lights: No
• With Skid Plate: No
• Receiver Hitch: No
• Tow Hooks Option: No
• Step Plate Option: No
• With Step Plate: No
• With Mounting Bracket: Yes
• Installation Type: Bolt-On
• Estimated Install Time (Hours): 2

Note

• Will Interfere With Adaptive Cruise Control
• Will Interfere With Forward Collision Warning Systems If Equipped
• Requires Trimming Of Tow Hook Pockets On Vehicles Without Tow Hooks
• Factory Tow Hooks Cannot Be Re-Used
• Will Interfere With Front Parking Sensor, If Equipped
