PROPORTIONING VALVE KNOB
PROPORTIONING VALVE KNOB

PROPORTIONING VALVE KNOB

Vendor: WILWOOD
SKU: BHTR_260-8419
Availability: 30 In Stock
No Fitment Data
This product doesn't have fitment application data. Please verify fitment manually.
Please hurry! Only 30 left in stock
$60.00
$60.00
Discount applied at checkout on selected items*
Price Beat Same Price or Lower Price
Earn 86 points
Free Shipping within 2 to 6 Days*

Couldn't load pickup availability

Description
Description
x

Attributes

  • Adjustment Style: Adjustable Knob Type
  • Maximum Pressure: 1500 Pounds Per Square Inch
  • Inlet Quantity: 1
  • Inlet Attachment: Female Threads
  • Inlet Size: 1/8 Inch-27
  • Outlet Quantity: 1
  • Outlet Attachment: Female Threads
  • Outlet Size: 1/8 Inch-27
  • Finish: Anodized
  • Color: Silver
  • Material: Aluminum/ Steel

Product Description

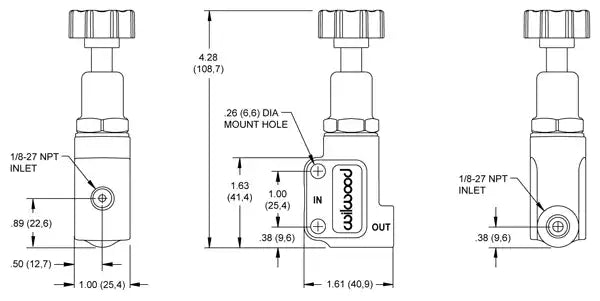

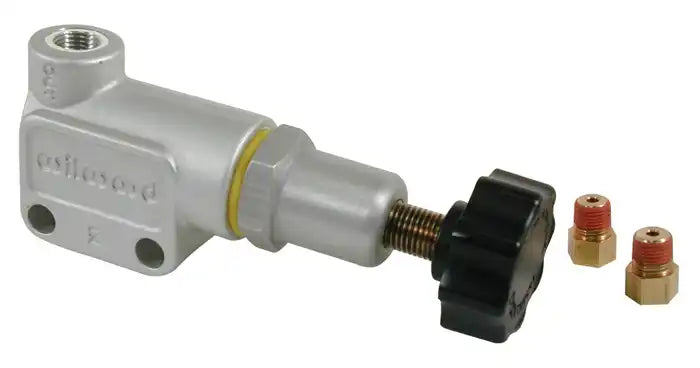

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150 to 1200 Pounds Per Square Inch and provide for a maximum decrease of 57 Percent in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. Valves weigh only 5.2 Ounce and have two 1/4 Inch side mounting holes spaced 1 Inch apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Features & Benefits

  • Features An Adjustable Knee Point From 100 To 1000 Pounds Per Square Inch
  • The Proportioning Rate Is 57 Percent From The Desired Knee Point Onward
  • Adjuster Knob With Fine Thread Tuning Provides Precise Pressure Adjustment
  • This Adjustment Lets You Fine Tune The Front To Rear Braking Balance By Proportionally Decreasing The Rear Brake Line Pressure
  • No Supplier Warranty
